Model NO.:
QMJ500-2
Quantity:

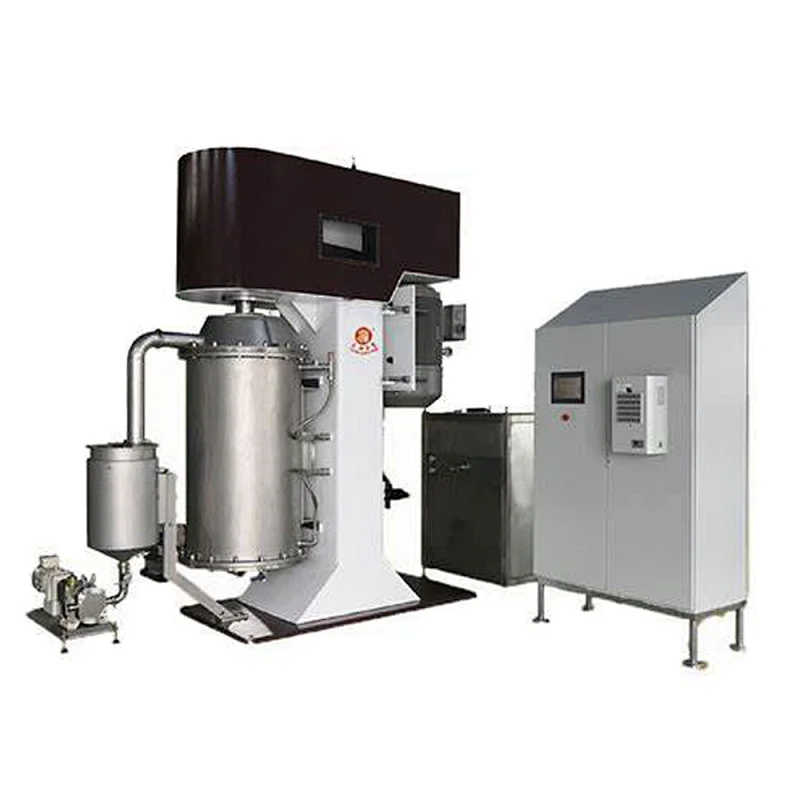

500L Chocolate Bead Mill

500L chocolate bead mill is one of the special equipment for fine grinding of chocolate slurry and its mixture. Continuous collision and friction with the material through the steel ball in the vertical cylinder. The size of the slurry particles is changed from large to small to achieve the required fineness.

500L chocolate bead mill has the advantages of compact structure, simple operation, convenient maintenance and small floor space; it is especially suitable for the production of laboratory chocolate.

Parameter Specification:

Model2050010001500
Main Motor Power (kw)2.5375575
Electrical Heating Power (kw)2.5699
Ball Quantity (kg)5075010001300
Capacity (kg/h)20 (kg/time)50010001500
Grinding Fineness (micron)18~2218~2218~2218~22
Weight (kg)145410049005200
Body Size (mm)500*800*900900*1800*28001000*2000*31001000*2000*3100

Main Advantage:

1. Chocolate tank with constant temperature heating

2. High-precision automatic temperature controller

3. Stainless steel sandblasted material

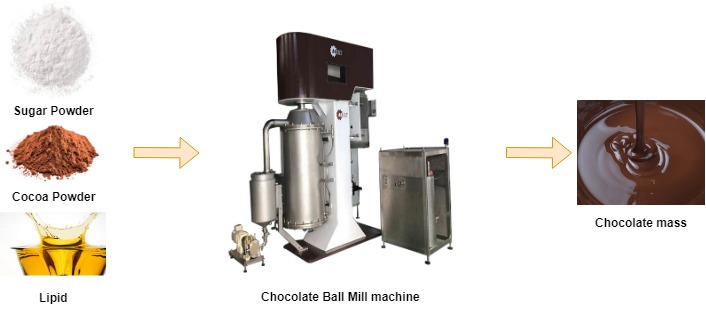

Flow Chart:
