500L Chocolate Ball Mill
QMJ500-1
500L Chocolate Ball Mill is one of the special equipment for fine grinding of chocolate slurry and its mixture.
Quantity:
500L Chocolate Ball Mill
500L Chocolate Ball Mill is one of the special equipment for fine grinding of chocolate slurry and its mixture. Continuous collision and friction with the material through the steel ball in the vertical cylinder. The size of the slurry particles is changed from large to small to achieve the required fineness.
500L Chocolate Ball Mill has the advantages of compact structure, simple operation, convenient maintenance and small floor space; it is especially suitable for the production of laboratory chocolate.
Parameter Specification:
| Model | 20 | 500 | 1000 | 1500 |
| Main Motor Power (kw) | 2.5 | 37 | 55 | 75 |
| Electrical Heating Power (kw) | 2.5 | 6 | 9 | 9 |
| Ball Quantity (kg) | 50 | 750 | 1000 | 1300 |
| Capacity (kg/h) | 20 (kg/time) | 500 | 1000 | 1500 |
| Grinding Fineness (micron) | 18~22 | 18~22 | 18~22 | 18~22 |
| Weight (kg) | 145 | 4100 | 4900 | 5200 |
| Body Size (mm) | 500*800*900 | 900*1800*2800 | 1000*2000*3100 | 1000*2000*3100 |
Main Advantage:
1. Chocolate tank with constant temperature heating
2. High-precision automatic temperature controller
3. Stainless steel sandblasted material

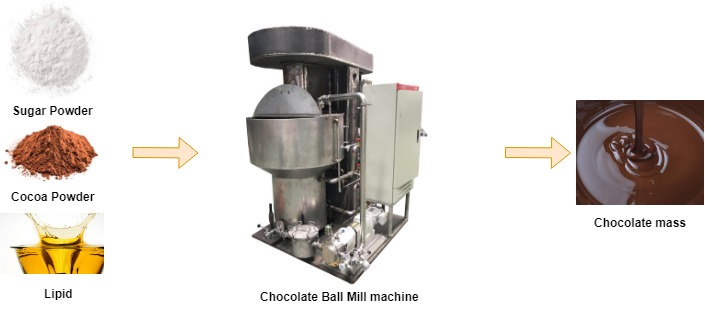

Flow Chart:
