1000L chocolate melanger machine
1000L Chocolate Melanger Machine
1000L chocolate melanger machine is our newly QYJ series chocolate conche machine. It adopts motor to automatically tighten the knife and has multiple functions such as refining, grinding, deodorization, dehydration, etc.
The whole machine has the advantages of compact structure, simple operation, convenient maintenance, leak-proof and durable, stable grinding, energy saving, low one-time investment, suitable for the production process requirements of various chocolate confectionery factories.
The closed structure ensures that the ground chocolate slurry meets the hygienic requirements, and the exhaust port is equipped with an exhaust fan to dehydrate and deodorize the slurry; Under the action of lecithin, the chocolate The slurry raw materials are stirred and mixed uniformly, which has a good effect on the dilution and emulsification of the chocolate slurry; the jacketed external structure can control the grinding temperature of the chocolate within a certain range, and carry out a certain insulation storage for the refined slurry Features such as functions are the key and necessary equipment for the production of chocolate. In addition to fine grinding of chocolate slurry, 1000L chocolate melanger machine can also be used to grind liquid oils such as jam and peanut butter.
Parameter Specification:
| Model | QYJ500 | QYJ1000 | QYJ1500 | QYJ2000 | QYJ3000 |
| Maximum Capacity (L) | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness (micron) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 |
| Main Spindle Rotating Speed (rpm) | 33 | 35 | 35 | 35 | 35 |
| Grinding Time (hours) | 16~22 | 16~22 | 16~22 | 16~22 | 16~22 |
| Main Motor Power (kw) | 15 | 22 | 30 | 37 | 45 |
| Electrical Heating Power (kw) | 5 | 2*2 | 6 | 3*2 | 12 |
| Weight (kg) | 2572 | 3050 | 4850 | 5350 | 7500 |
| Body Size (mm) | 2465*1146*1312 | 2627*1280*1520 | 2918*1650*1920 | 3040*1912*1920 | 3450*2016*2280 |
Main Advantage:
1. Scraper liner made of high manganese steel, the liner is heat-treated to improve wear resistance and prolong service life.
2. Integral injection molding reduction box body, more stable.
3. After the cylinder body of the refiner is rolled and formed, it is aging treatment to fully remove the internal stress, the assembly structure is more stable, and the accuracy is higher.
4. All refiners have undergone water pressure testing to ensure the tightness of the interlayer water jacket.

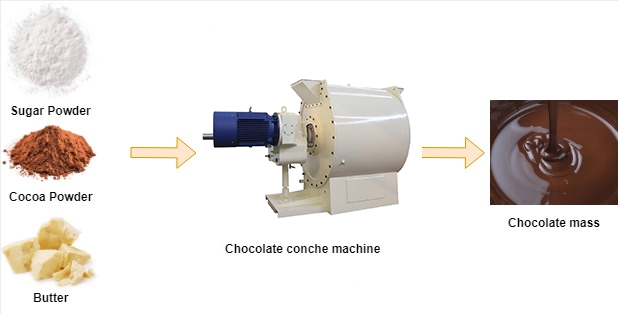

Flow Chart:
