Chocolate Melting Equipment

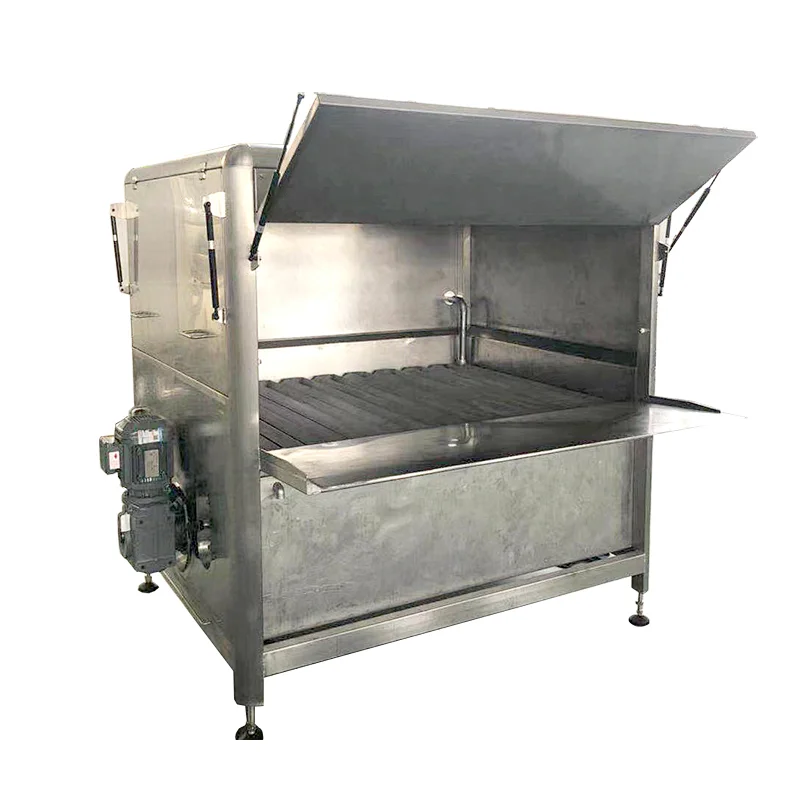

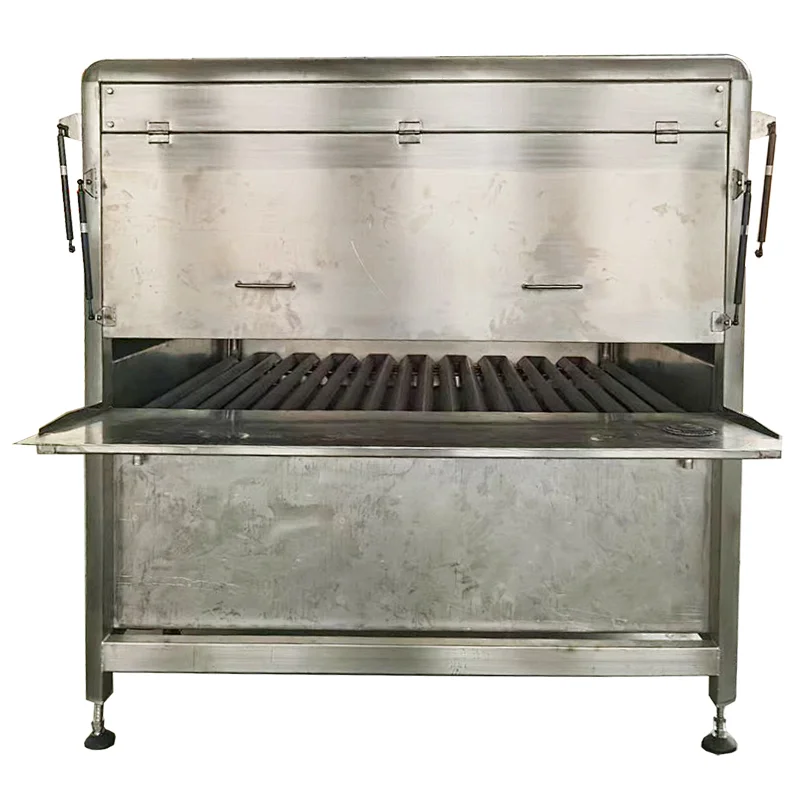

Chocolate Melting Equipment is one of the indispensable equipment in the chocolate production process. Industrialized chocolate and semi-finished chocolate products are solid at room temperature. The main function of the 500L chocolate melting tank is to melt solid chocolate into liquid to meet the production needs of chocolate. Meanwhile, it can also be used to melt cocoa liquor in preparation for process needs.

Chocolate Melting Equipment is made of high-quality stainless steel with high strength and durability.Equipped with mixing , 2 sets of automatic temperature control systems, water tank and water circulation system. It help to keep the water temperature stable and improve the melting efficiency.

Parameter Specification:

Model5001000
Maximum Capacity (L)5001000
Main Spindle Speed (rpm)2424
Main Motor Power (kw)1.52.2
Electrical Heating Power (kw)44
Circulating Water Pump Power (kw)0.120.12
Body Size (mm)1450*1150*18001650*1350*1850

Flow Chart:
