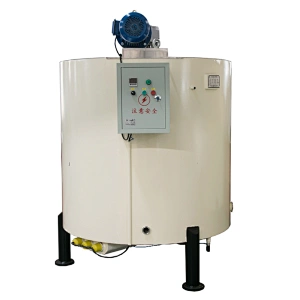

500L Chocolate holding tank
QBJ500
500L Chocolate holding tank for store the chocolate slurry,compact structure, easy to use, and jacketed structure,food grade stainless steel material, automatic electrical heating control system, 500kg output capacity.
Quantity:
500L Chocolate Holding Tank
500L Chocolate holding tank is one of our newly QBJ insulation tank series. adopt to compact structure, easy to use, and jacketed structure.
The water in the interlayer of the cylinder is heated by electric heating, and the chocolate slurry in the insulation tank or the chocolate slurry that is solidified inside is melted; During the heat preservation process, the equipment continuously stirs the chocolate slurry at the same time, which has the functions of deodorizing, dehydrating and preventing the separation of the slurry and grease.
Parameter Speficiation:
| Model | 30L | 100L | 300L | 500L | 1000L | 2000L | 5000L |
| Maximum Capacity (L) | 30 | 100 | 300 | 500 | 1000 | 2000 | 5000 |
| Main Sprindle Speed (rpm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Main Motor Power (kw) | 0.37 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 5 |
| Electrical Heating Power (kw) | 1 | 2.5 | 5 | 5 | 7.5 | 7.5 | 15 |
| Heating Holding Power (kw) | 1 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 5 |
| Weight (kg) | 60 | 200 | 290 | 515 | 785 | 1500 | 3000 |
| Body Size (mm) | Ø500*600 | Ø750*700 | Ø850*1060 | Ø1035*1480 | Ø1250*1700 | Ø1480*1840 | Ø2000*2500 |
Main Advantage:
1: 304 stainless steel material, in line with food safety requirements.
2: Automatic temperature control system.
3: Integrate melting, stirring and storage functions.
