Model NO.
500
Quantity:

Mixing Tank

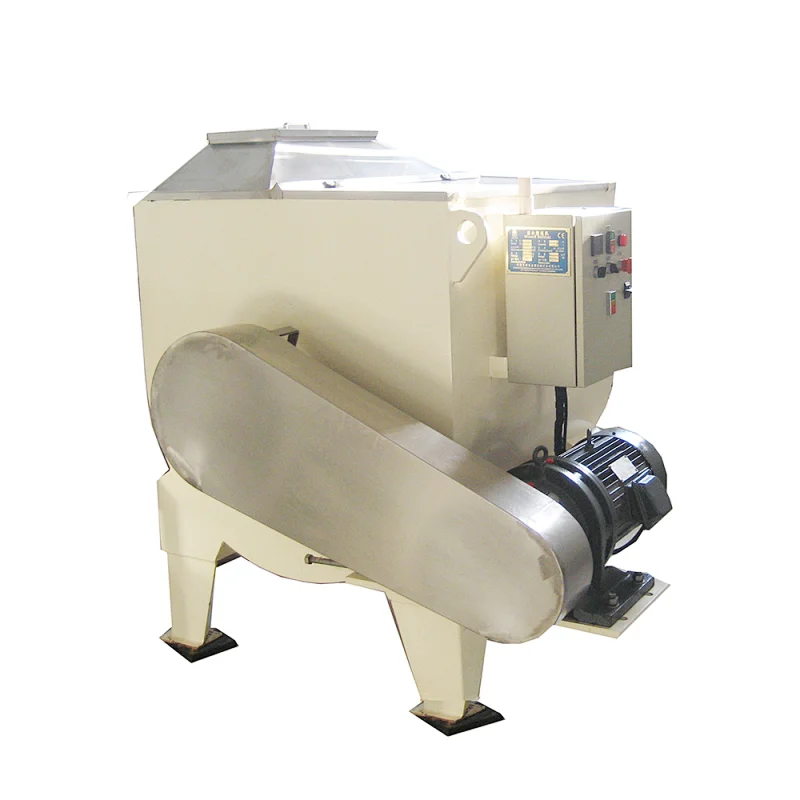

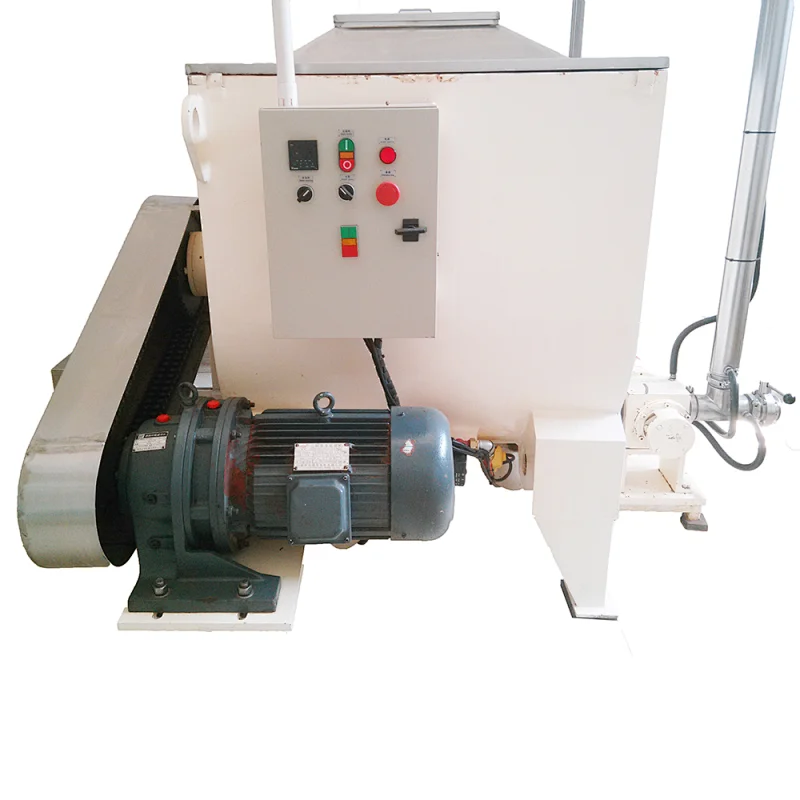

Mixing tank adopts a jacketed structure, which heats the water in the inter layer of the cylinder through electric heating, and the blade stirring paddle stirs it to make it evenly mixed to prevent product adhesion; the mixing tank is used for pre-mixing of chocolate slurry before fine grinding, which can shorten the grinding time , conducive to the cleanliness of the environment.

Parameter Specification:

Model5001000
Maximum Capacity (L)7701550
Main Spindle Speed (rpm)238238
Main Motor Power (kw)7.511
Electrical Heating Power (kw)88
Weight (kg)9001350
Body Size (mm)1500*1400*14501750*1680*1630

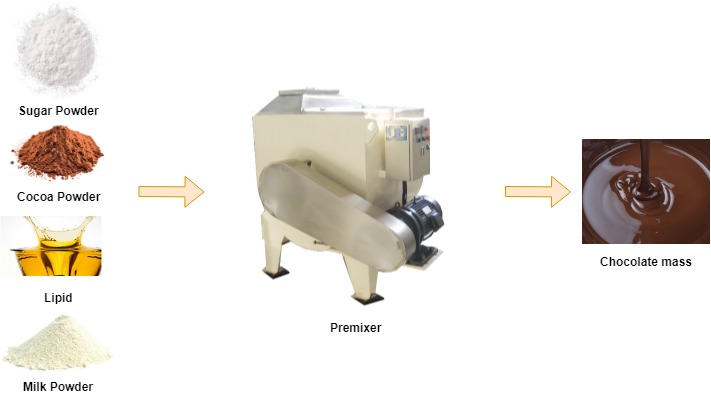

Flow Chart:

mixing tank
