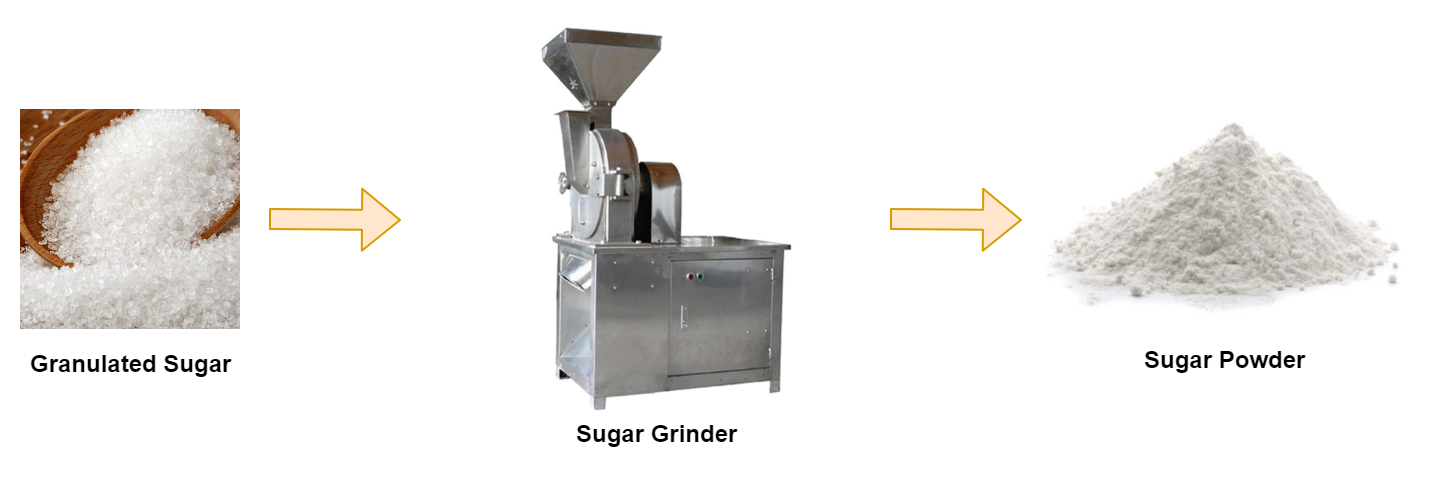

320 Sugar Grinder adopts the impact crushing method. After the material enters the crushing chamber, it is impacted by six movable hammers running at high speed. After the gear ring and the material collide with each other, they are crushed. The crushing fineness is determined by the mesh screen.
320 Sugar Grinder has the advantages of high efficiency, low noise, good working performance, etc., and is suitable for crushing granulated sugar.
Parameter Specification:
Model
320
420
520
Main Spindle Speed (rpm)
4400
4400
3310
Capacity (kg/h)
100~300
100~500
200~1000
Motor Power (kw)
7.5
11
22
Smashing Fineness (mesh)
20~120
20~120
50~200
Body Size (mm)
700*500*1500
700*500*1550
3665*1265*2580
Main Advantage:
1. Alloy steel disc and cutter head.
2. Suitable for grinding heat sensitive materials.
3. The output size can be adjusted by changing the filter screen.
320 Sugar Grinder adopts the impact crushing method. After the material enters the crushing chamber, it is impacted by six movable hammers running at high speed. After the gear ring and the material collide with each other, they are crushed. The crushing fineness is determined by the mesh screen.
320 Sugar Grinder
SFJ320
0.00~0.00
320 Sugar Grinder adopts the impact crushing method. After the material enters the crushing chamber, it is impacted by six movable hammers running at high speed. After the gear ring and the material collide with each other, they are crushed. The crushing fineness is determined by the mesh screen.
