Snicker Bar Production Line
士力架生产线
Snicker Bar Production Line integrates the sugar boiling & mixing system, the tablet forming, cooling, stripping, cutting system, coating machine and packaging machine, connected to become a complete assembly line, which can produce one or more layers of various types of snicker.
Quantity:
Snicker Bar Production Line
Snicker Bar Production Line integrates the sugar boiling & mixing system, the tablet forming, cooling, stripping, cutting system, coating machine and packaging machine, connected to become a complete assembly line, which can produce one or more layers of various types of snicker.
Parameter Specification:
| Model | JYT-500 | JYT-800 |
| Capacity（kg/h） | 300-500 | 600-800 |
| Cutting Times（times/min） | 50-100 | |
| Cutting Size (mm) | Length：15-200mm | |
| Width：15-150mm | ||
| Thickness：8-20mm | ||
| Belt Width Before Branching（mm） | 400 | 550 |
| Belt Width After Branching（mm） | 600 | 1000 |
| Belt Width of Enrobing Machine（mm） | 800 | 1200 |
| Body Size (mm) | 29000*3000*4200 | 29000*3500*4200 |

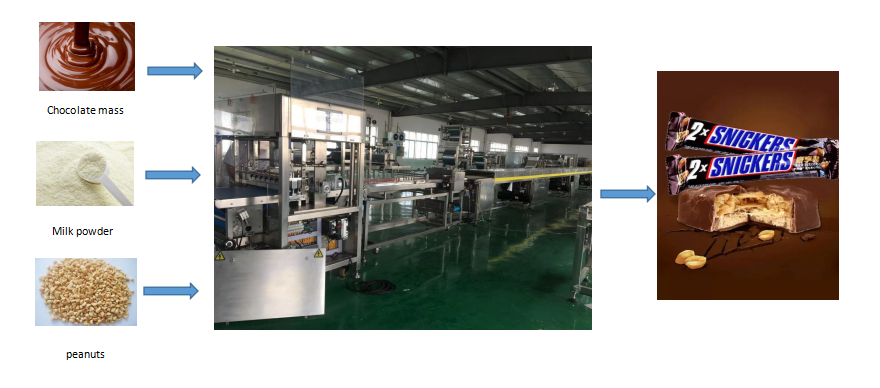

Flow Chart:
