Chocolate Block Production Line

Chocolate Block Production Line

Chocolate block is one of the simplest and most popular chocolates. The production of chocolate block requires chocolate raw material processing equipment and molding equipment. First melt the solid fat in the melting tank, pour the granulated sugar into the sugar grinder machine and smash it for using. Then transfer the liquid fat to the mixer by pump, the cocoa powder is manually removed into the mixer to stir. In the mixer also need other ingredients of chocolate such as milk powder, whey powder, etc. The mixed mass is transported to the conche through the pump for grinding. In the conche, the chocolate mass is grinder through mixing and stirring to achieve the effects of homogenization, emulsification and deodorization. After 10-12 hours, the chocolate is grind to below 25 microns. The pump transfer the ground mass from the conche to the holding tank for the next step of molding and production. If it is real chocolate, a tempering machine is needed to adjust the temperature. The chocolate mass is transferred from the holding tank to the tempering machine by pump, and the tempered chocolate mass is transferred to the molding machine by pressure for forming.

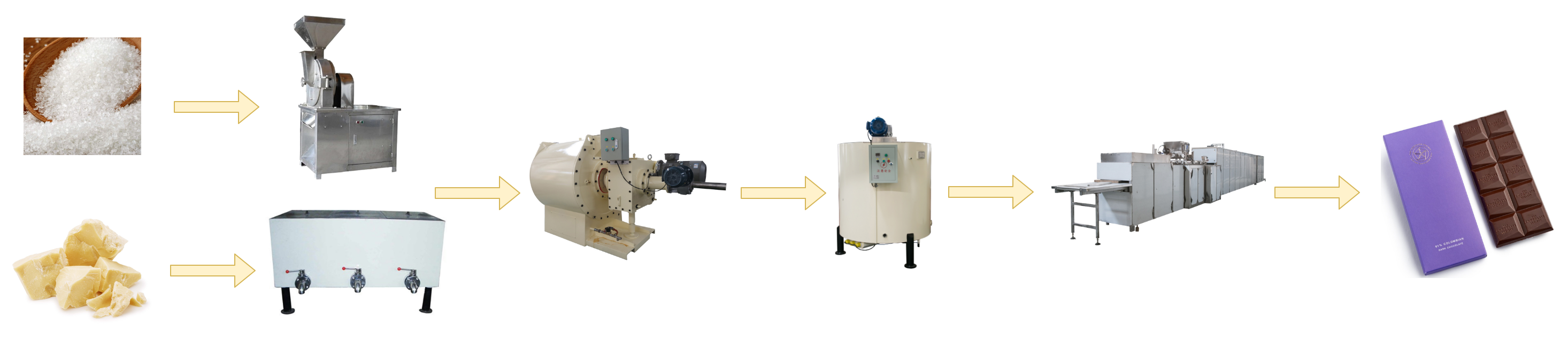

Flow Chart:

Chocolate Block Production LineEquipment List:

Equipment Name Quantity (sets) Configuration
SFJ320 Sugar Grinder 1 required
RYJ500 Fat Melting Tank 1 required
QYJ1000 Conche 1 required
QBJ1000 Holding Tank 1 required
DTJ35 Chocolate delivery pump 3 required
Q111-510 Chocolate Moulding Line 1 required
Magnetic filter 1 Optional
Cold water tower 1 Optional
